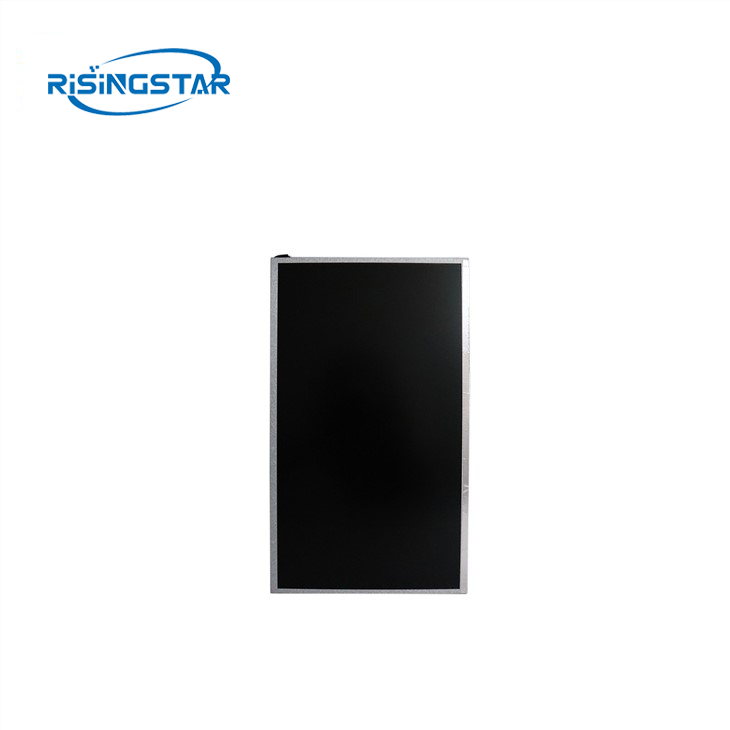

Modell: G133IGE-L03
Marke: Innolux
Size: 13.3-inch
Brightness: 500-nits
Marke: Innolux
Transport: Ocean,Land,Air,Express
Ort Von Zukunft: Shenzhen
Hafen: Shenzhen
Zahlungsart: T/T,D/P,D/A,Paypal
Incoterm: CFR,FOB,CIF,EXW
| brand | Innolux | Model name | G133IGE-L03 |
| size | 13.3 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 WXGA 113PPI | Pixel configuration | RGB vertical bar |
| Display size | 286.08×178.8(H×V)mm | Surface treatment | Fog surface, Hard coating (3H) |
| Open zone | 289.1×181.8(H×V)mm | Contrast Ratio | 800:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Typ.)or customized | Outline dimension | 308.7×195×8.2(H×V×D)mm |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
|
|
| Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal |
|
|
| work environment | Storage temperature: -40 ~ 80 °C Working temperature: -30 ~ 70 °C |
|
|
