Minimum der Bestellmenge:1 Piece/Pieces
Modell: G104X1-L04

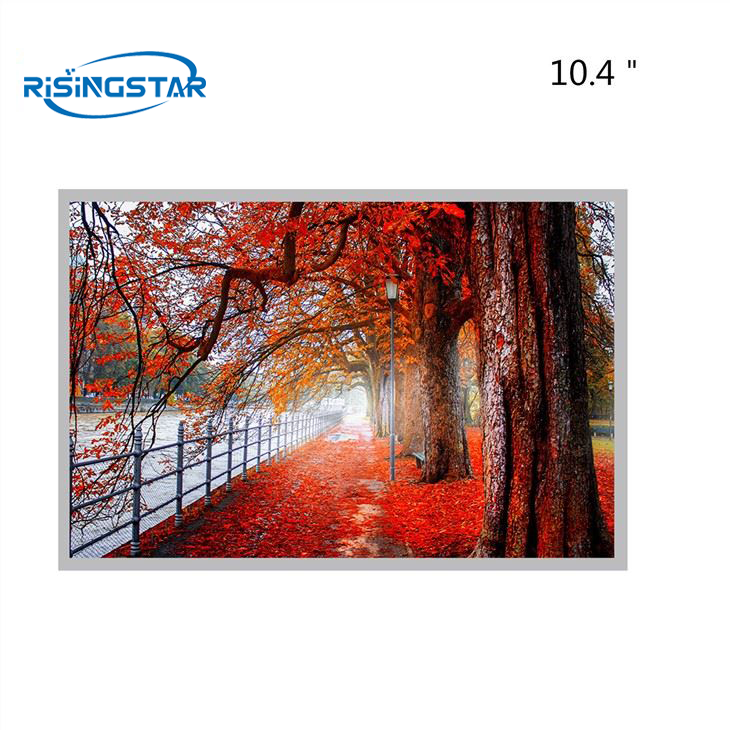

10.4 "Innolux G104x1-L04 Helligkeit 500Nits Sonnenlicht lesbares TFT-LCD-Modul.
Bildqualität schwarzer Technologie.
Die Dunkelheit ist dunkler, das Licht ist heller.
Industrialer Flüssigkristall, um die Qualität des Flüssigkeitskristalls zu gewährleisten.
NTSC 72% Farbspielabdeckung, restaurieren Sie die reichhaltige Bildfarbe.
Gleiche Größe Andere Modelle: G104ACJ-L01, G104XCE-L01, G104V1-T03
| brand | Innolux | Model name | G104X1-L04 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 [XGA] 123PPI | Pixel configuration | RGB vertical bar |
| Display size | 210.4 × 157.8 mm (H×V) | Surface treatment | Fog surface |
| Visual size | 215.4 × 161.8 mm (H×V) | Contrast Ratio | 1000:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 225.5 × 176.3 × 9.2 mm (H×V×D) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) ,terminal, 30 pins | ||
| work environment | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
