Minimum der Bestellmenge:1 Piece/Pieces
Modell: G104V1-T03

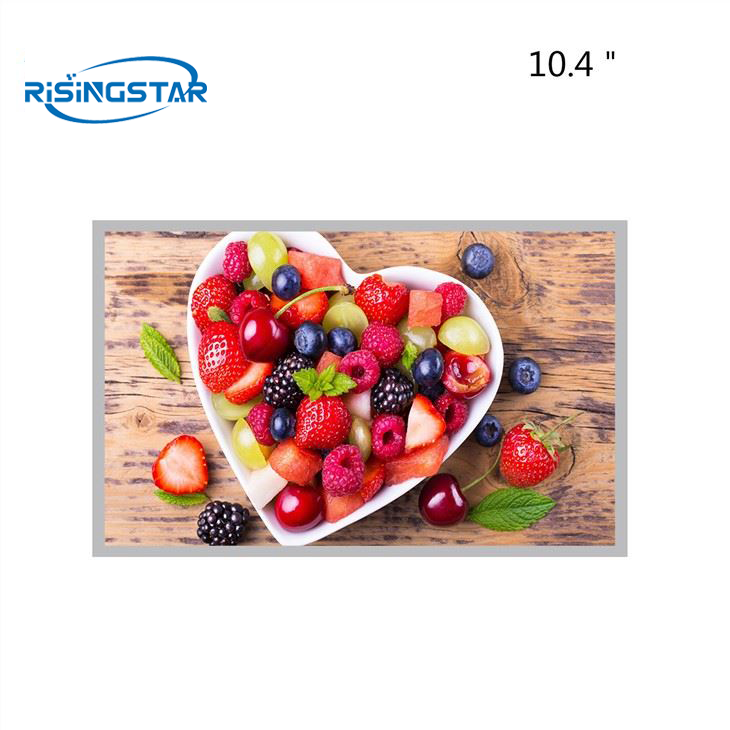

10.4 "Innolux G104V1-T03 Helligkeit 500nits Sonnenlicht lesbares TFT-LCD-Modul.
| brand | Innolux | Model name | G104V1-T03 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 640(RGB)×480 VGA 76PPI | Pixel configuration | RGB vertical bar |
| Display size | 211.2×158.4(H×V)mm | Surface treatment | Fog surface, Hard coating (3H) |
| Open zone | 215.4×161.8(H×V)mm | Contrast Ratio | 1500:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 225.5×176.3×9.34mm(H×V×D) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
|
|
| Signal interface | 31 pins CMOS/TTL (1 ch, 6-bit) ,terminal |
|
|
| work environment | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
|
|
