Minimum der Bestellmenge:1 Piece/Pieces
Modell: G121X1-L04

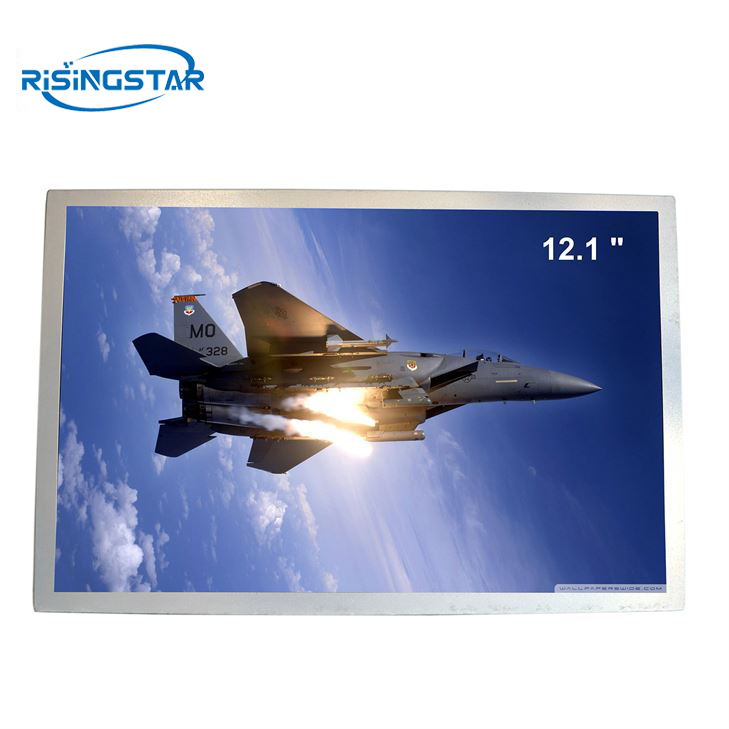

12,1 Zoll Innolux G121X1-L04 hohe Helligkeit 500nits TFT LCD-Panel Sonnenlicht sichtbar.
| brand | Innolux | Model name | G121X1-L04 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 [XGA] 105PPI | Pixel configuration | RGB vertical bar |
| Display size | 245.76 × 184.32 mm (H×V) | Surface treatment | Fog surface, Hard coating (3H) |
| Visual size | 249.0 × 187.5 mm (H×V) | Contrast Ratio | 700:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 260.5 × 204 × 7.7 mm (H×V×D) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
|
|
| Signal interface | LVDS (1 ch, 6/8-bit) , terminal , 20 pins |
|
|
| work environment | Storage temperature: -40 ~ 80 °C Working temperature: -30 ~ 70 °C |
|
|
Hot-Tags: 12,1 "Innolux G121X1-L04 TFT LCD-Modul, China, Fabrik, billig, preis, angepasst, Angebot, Fensterausstattung LCD, hohes helles LCD-Panel 49 Zoll, 15-Zoll , Outdoor TFT LCD, 32 Zoll hohe helle Displays , LCD -Panel, LCD -Modul, Hochhelligkeitsanzeige.
12.1 "Innolux G121XGE-L01 TFT LCD-Modul
10.3 "LG LA103DV1-SL01 TFT LCD-Modul
