Minimum der Bestellmenge:1 Piece/Pieces

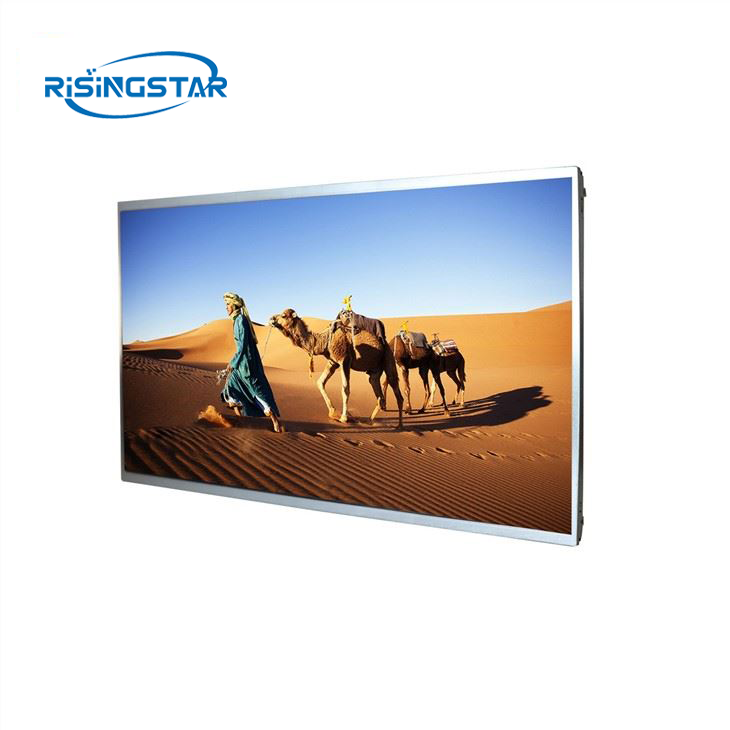

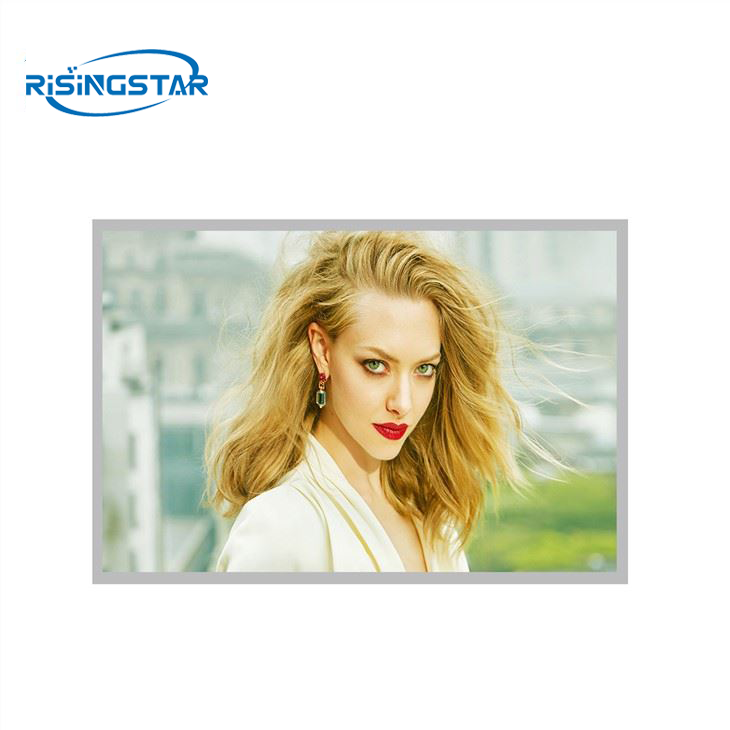

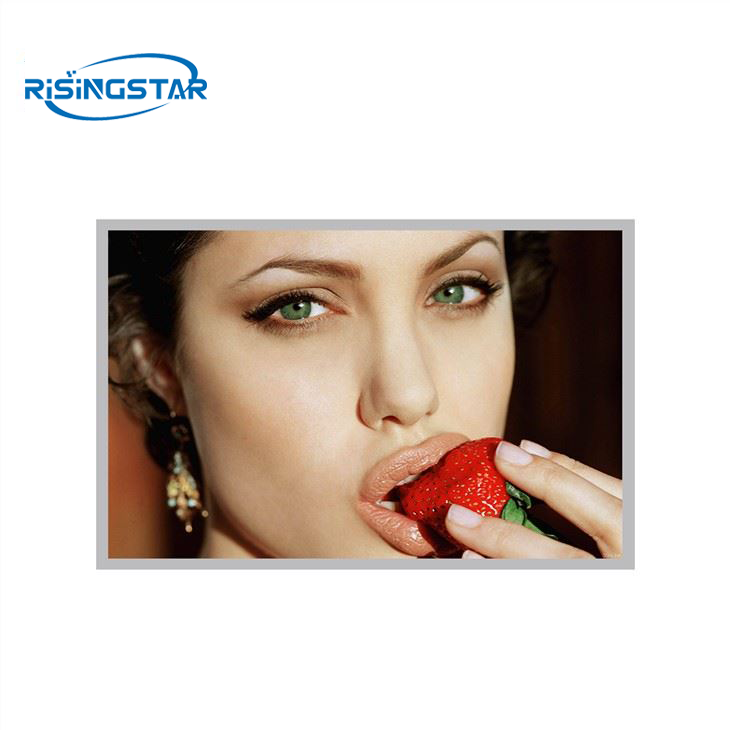

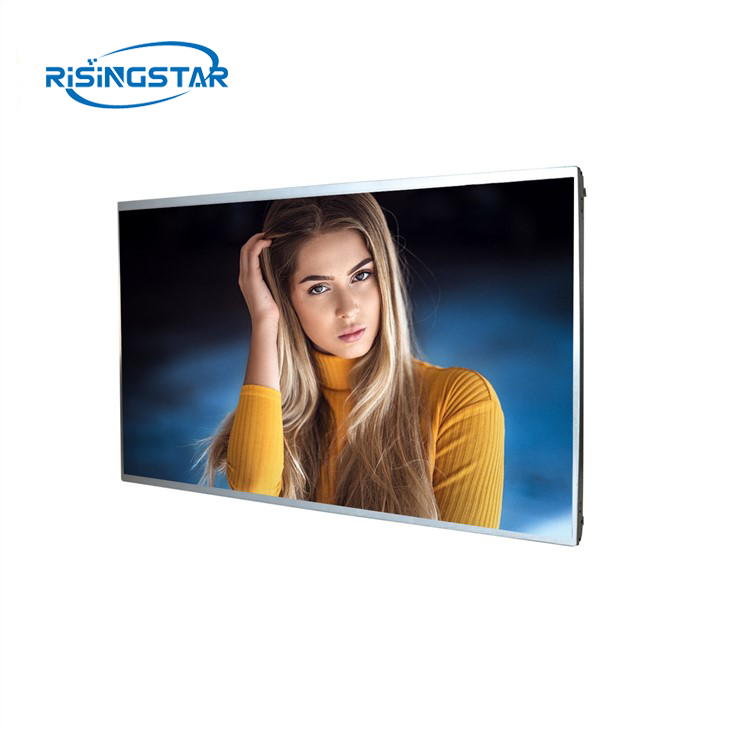

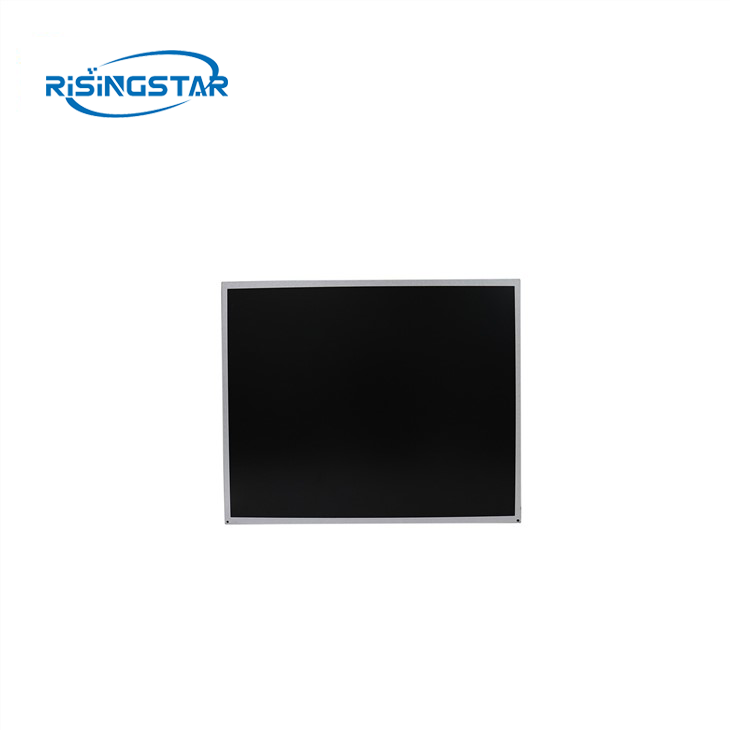

12.1 Zoll 1280*800 Beigness10000 Nits LCD -Panel, TFT -LCD LCD -Anzeigemodul im verwendeten Outdoor -Player.

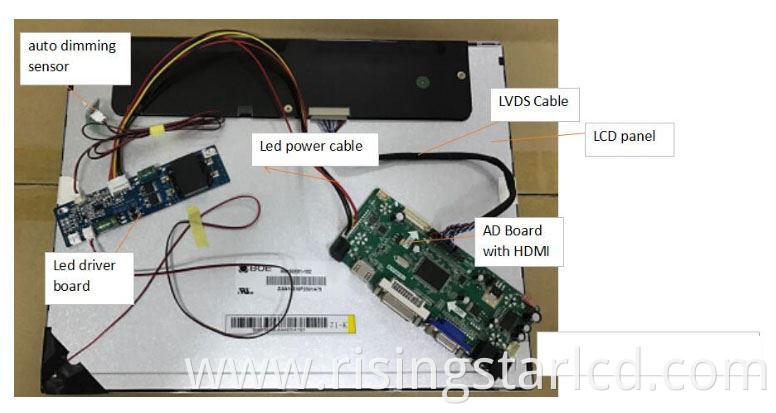

Produkt zusätzliches Zubehör
Produktanwendung:
|
Size
|
12.1inch
|
|||
|
Panel item
|
RS121NET-N10
|
|||
|
Panel type
|
a-Si TFT-LCD
|
|||
|
Display mode
|
IPS,Normally white，transmissive display
|
|||
|
Pixels
|
1280*800
|
|||
|
brightness
|
1000cd/m2
|
|||
|
Constrast Ratio
|
700：1
|
|||
|
Response Time
|
4/12ms
|
|||
|
View angle
|
80/80/80/60
|
|||
|
View area
|
263.52*165.6mm(H*V)
|
|||
|
Dispaly area
|
261.12*163.2mm(H*V)
|
|||
|
Outline Size
|
283*185.1*10.2mm(H*V*D)
|
|||
|
Signal Type
|
WLED
|
|||
|
Working freqyency
|
60Hz
|
|||
|
Working temperature
|
-30~80ﾟC
|
|||
|
Storage Temperature
|
-30~80ﾟC
|
|||
|
Display ratio
|
16:9
|
|||
|
Display color
|
16.7m
|
|||
|
Supply Voltage
|
3.3V
|
|||
|
Surface Treatment
|
Haze
|
|||
|
Weight
|
0.62kgs
|
|||
